System Hardware

The Safe 2 Race system hardware has been developed to be integrated within a number of display options for use across different sports and vehicles. Hardware can be integrated within existing Motorsport display options or as a stand alone display unit.

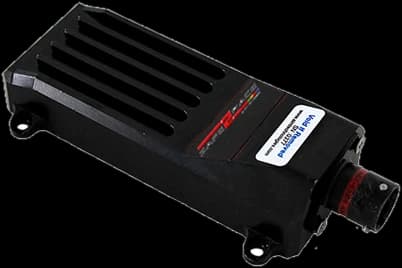

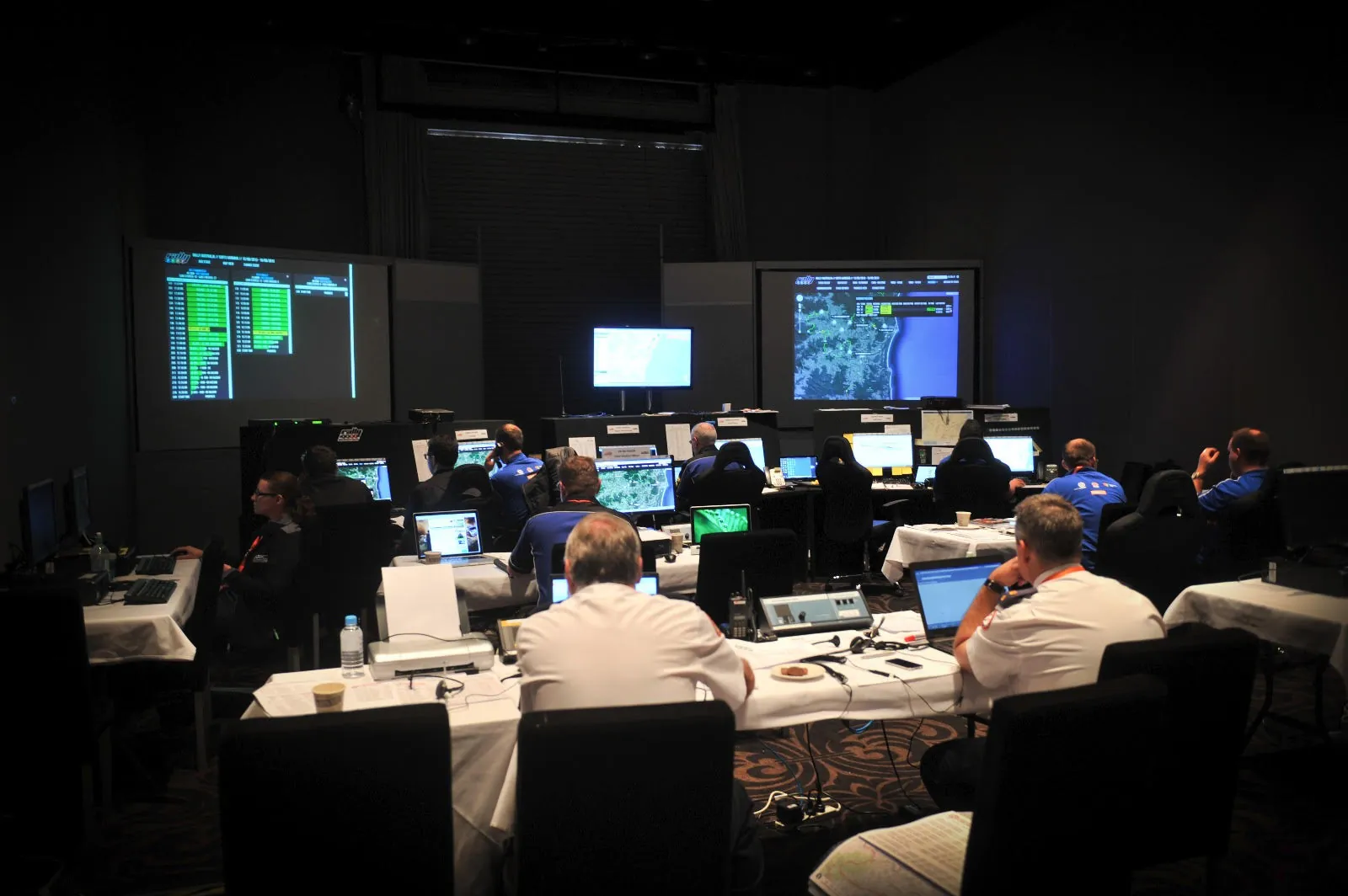

The Safe 2 Race system unit transmits radio messages to race control and other competition and support vehicles, allowing safety information to be processed in real-time.

As well as reporting to race control , the unit creates internal logs of second-by-second data including, time, location, speed, bearing, g-forces, safety status, communication logs and more. These logs are recoverable via USB for accident analysis, penalty judgement and investigative purposes.

Due to the dedicated system design and the ability to transmit and receive CAN information, to transmit and display the warning information to the driver, rider or pilot, we can offer you several simple solutions, to match the category of Motorsport your involved in, we can even mix and match them if your regulation allow.

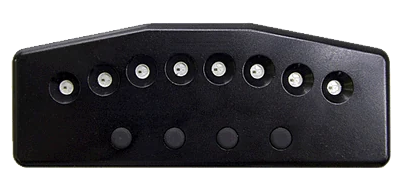

The LED Bar

The Safe 2 Race Remote LED bar allows us to transmit the basic information, like Yellow, Yellow flashing, Red, Blue, Green, Mechanical and Finish flags very simply. This also has the added bonus of four small buttons at the base of the display to allow for conformation to Race Control. This can be programmed to suit the individual needs of the race series.

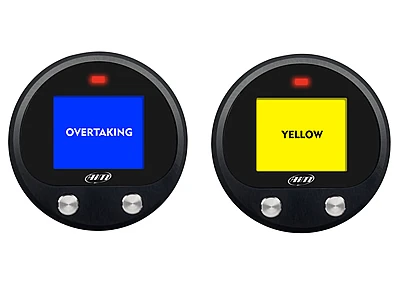

OLED Display

The Safe 2 Race Small OLED Display allows the display of all flags and messages on a small 60 x 50mm display. This display option has an added bonus of having two small buttons at the base of the display to allow for conformation to Race Control. This can be programmed to suit the individual needs of the race series, for example messages including; “SOS” etc.

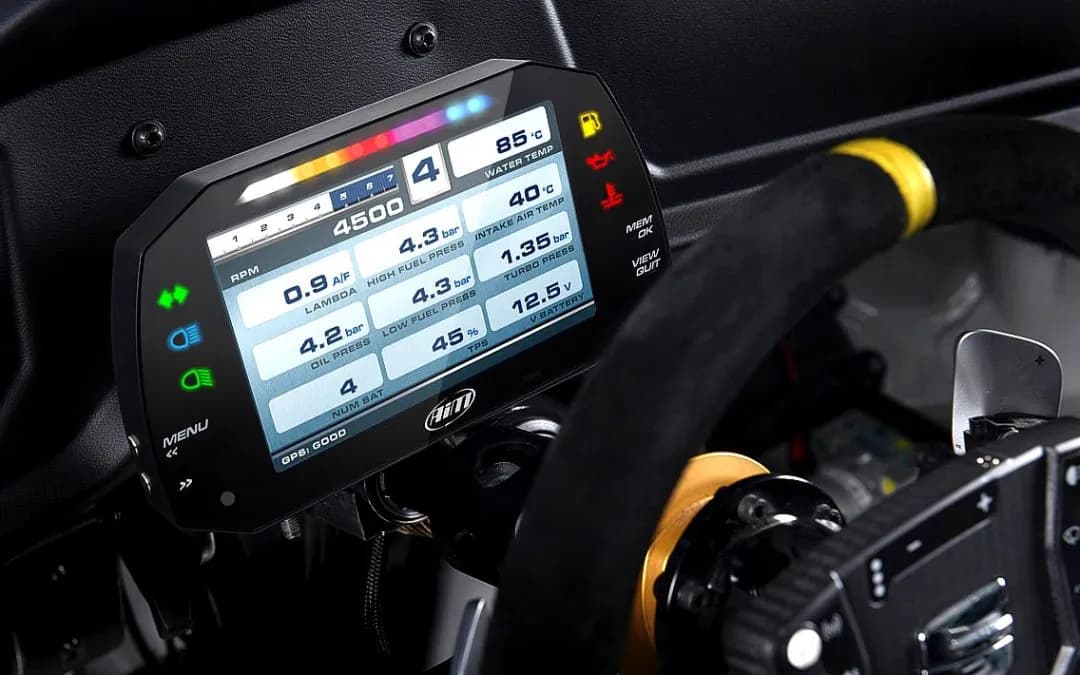

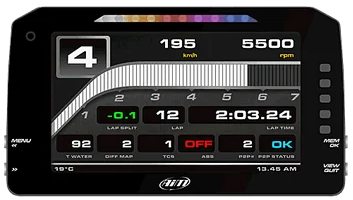

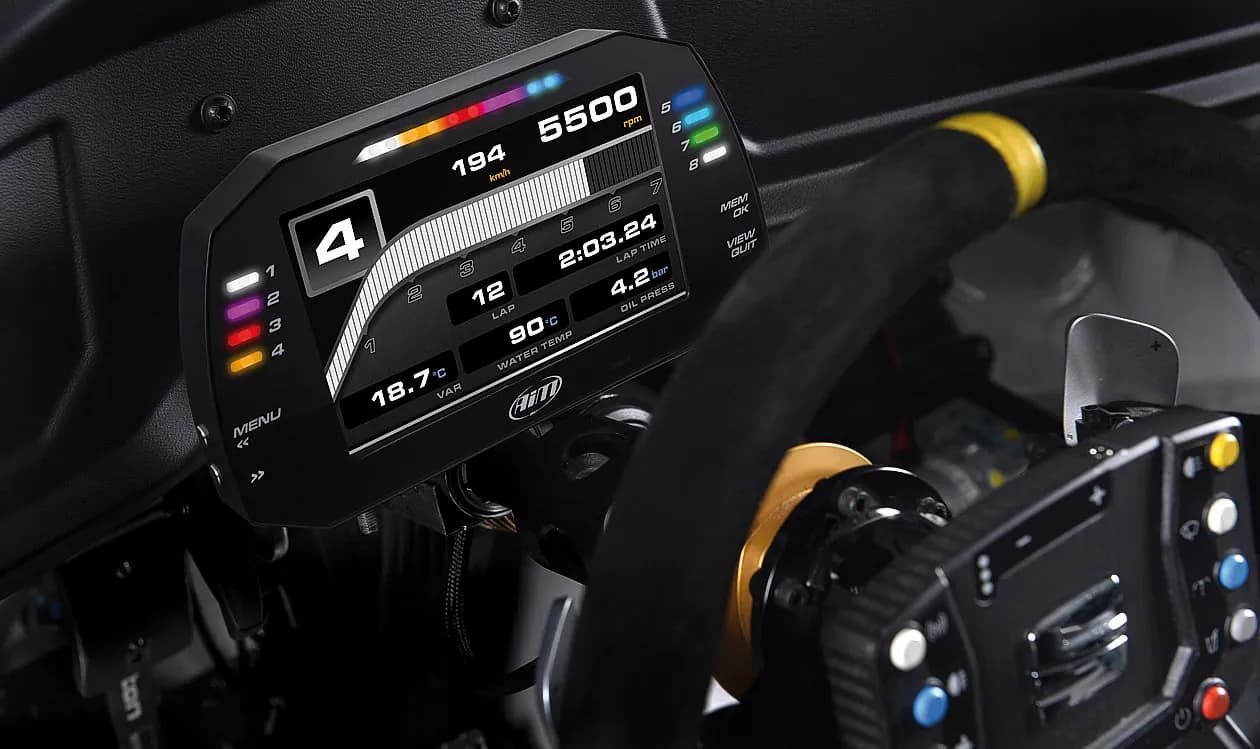

CAN Output

The CAN output Link to a OLED logger or display, allows the display of all flags and messages on a much larger scale as well as dedicated messages from Race Control, should it be needed. This option offers an integrated logger or display and safety option, it allows new or existing existing Aim hardware to be used for the implementation of the system.

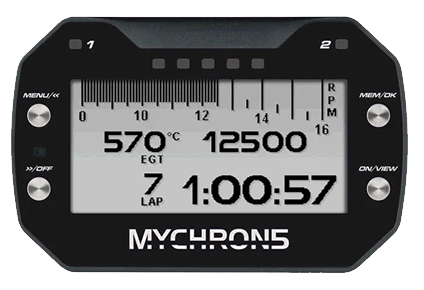

Dash LED

The LED bar from a logger or dash display allows us to transmit the basic information, like Yellow, Yellow flashing, Red, Blue, Green, Mechanical and Finish flags with simplicity. This option offers an integrated logger or display and safety option, it allows new or existing existing Aim hardware to be used for the implementation of the Safe2Race system.
